CUSTOM REPORT
OVERVIEW
You can create customized reports directly in the NetChart interface or by importing a text file.
HOW TO USE
Define properties such as KPIs the report will consider, legend, rules, and restriction. It is possible to create reports in NetChart or import files.
On the screen, are shown:

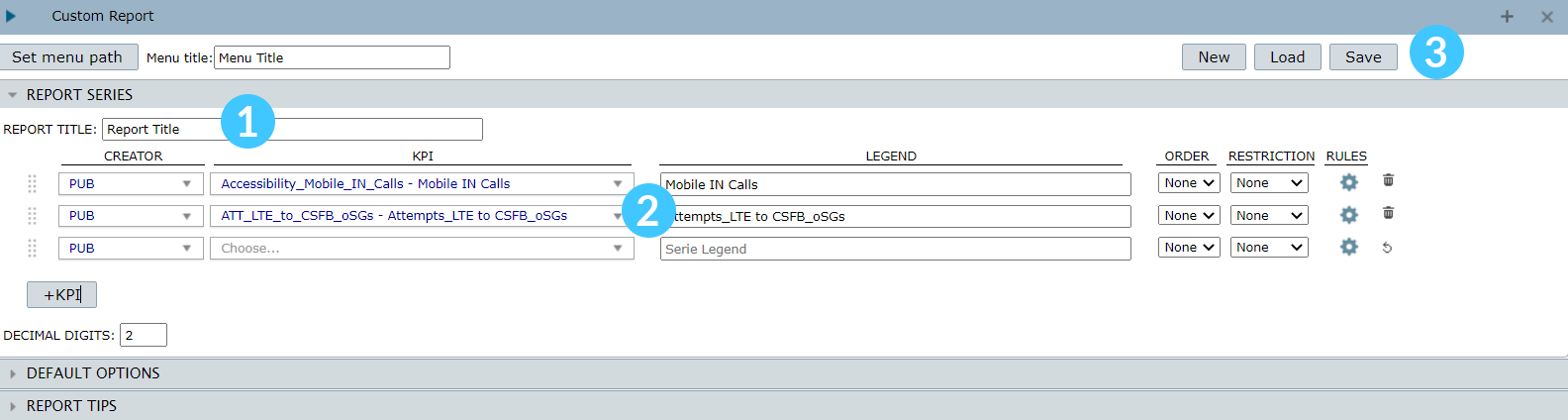

1- Report Title.
3- New, Load, and Save buttons.
FUNCTIONS DESCRIPTION
Creating Reports on the interface

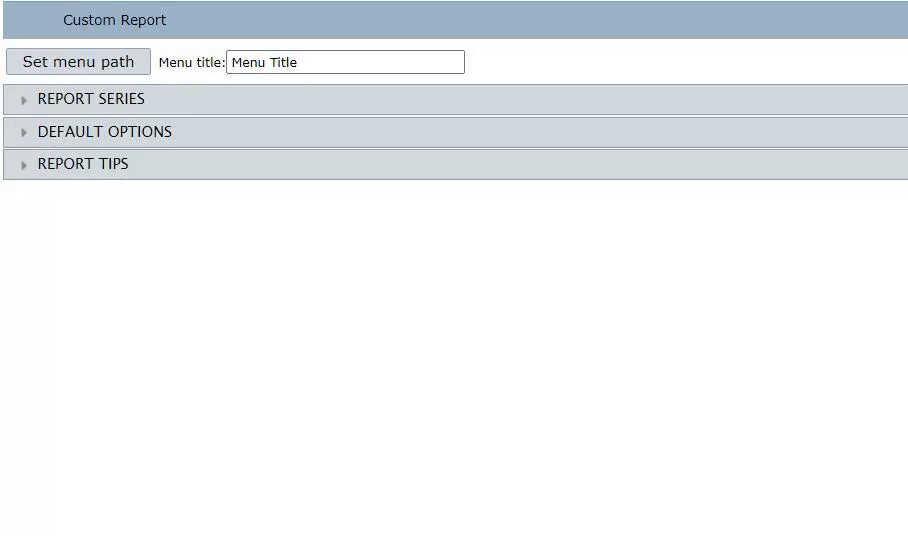

Click on Custom and select Manage, then Report.

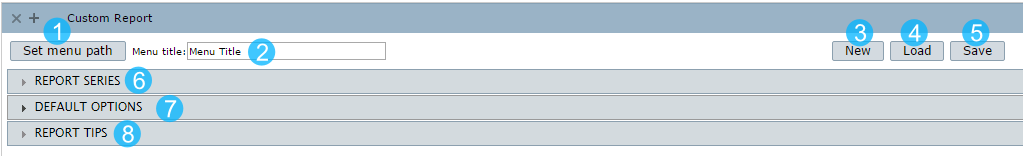

1 – Select the report position in the menu (see more details in the topic Set Menu Path).
2 – Define a title that will appear in the menu.
3 – Clear all fields for the new report creation.
4 – Load some reports.
5 – Save the entered report.
6 – Define the report properties (see more details in the topic Report Properties).
7 – Set the default options of the report (see more details in the topic Report Options).
8 – Write a brief comment related to the report, if you want.
SET Menu Path

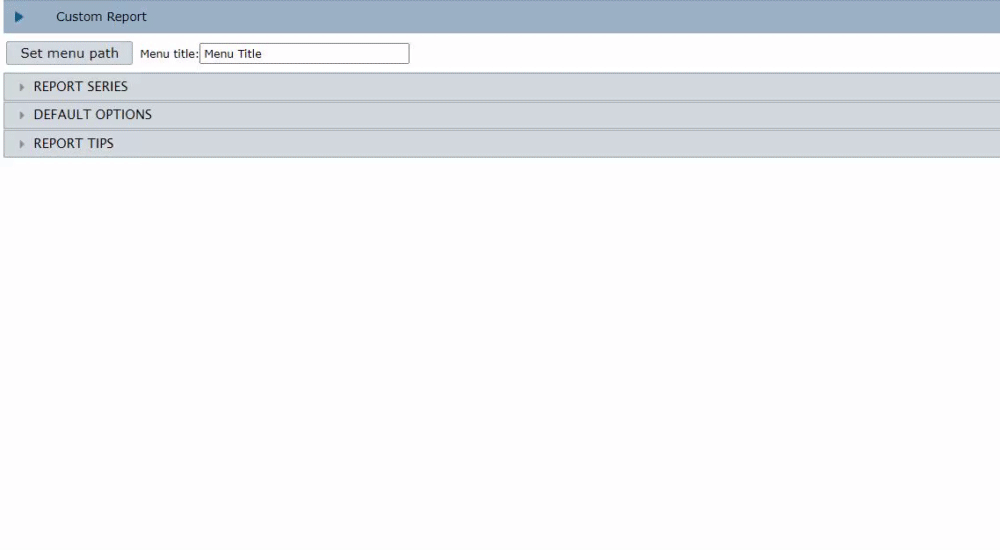

To define the report position in the menu, click on the Set menu path.
In the new window, write the report title as it will appear in the menu.
After that, drag it into your user’s menu.
Click on Apply to save changes.
Report Properties

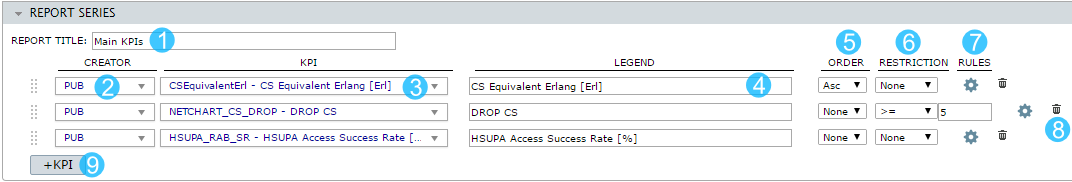

1 – Title of the report.
2 – Select the KPI creator.
3 – Select the KPI(s) to use in the report. You can also use counters.
4 – Legend of the KPI. NetChart automatically defines the KPI’s name as a legend, but you can edit it.
5 – Order the KPI values in ascending or descending order.
6 – If selected, report results will be filtered according to rule and restriction values.
7 – Define rules scale to the KPI values.
8 – Delete the current report.
9 – Click to add more KPIs to your report.
Default Options

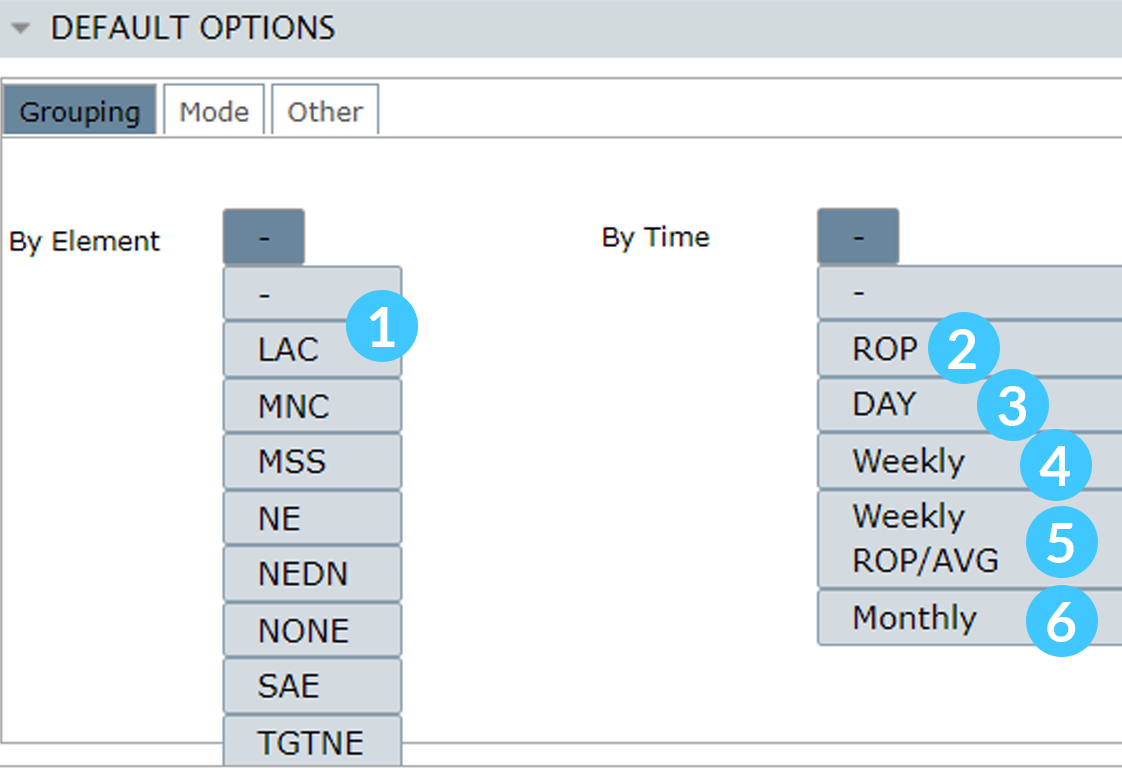

Grouping
1 – By Element: Group results by elements.
2 – ROP: If enabled, the results will be grouped by ROP, generating an outcome for each time aggregation within the selected range.
3 – Day: The results will be grouped by day, generating an outcome within the selected range for each day.
4 – Weekly: If enabled, the results will be grouped by week. It requires choosing the day to start, and the results consider the whole week. For example, selecting the first weekday as Sunday will use data until the last selected Sunday.
5 – Weekly ROP/AVG: If enabled, the results will be grouped by week, considering the ROP average.
6 – Monthly: If enabled, the results are grouped by month relative to the month selected.
Mode
1 – Track re-homed: If enabled, it will use data from the previous host controller to generate a chart/report.

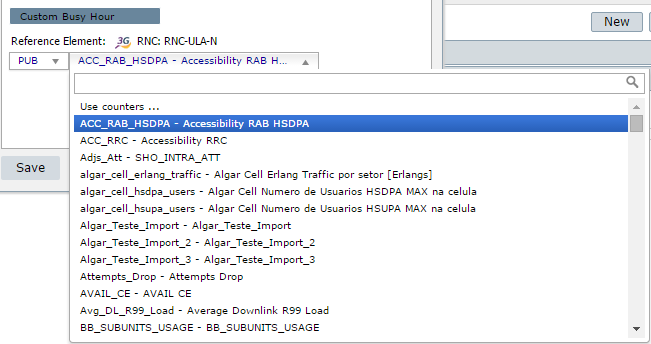

2 – Custom Busy Hour (BH): If enabled, it requires choosing a KPI and an element for the Custom Busy Hour calculations. The results will consider the maximum value of the selected KPI for the selected element. For example, the BH will be the greatest value of the KPI ACC_RAB_HSDPA for the RNC-ULA-N element in the image below.
NOTE: The Custom Busy Hour only works together with HOUR/ROP aggregation time.
3 – End to end: Choose a specific End to End Report to associate it to the report.

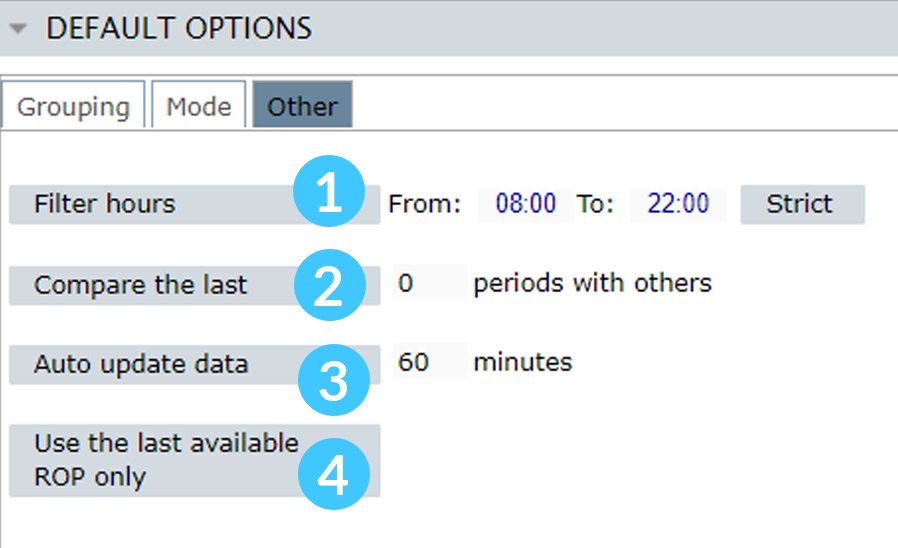

Other
1 – Use just the data collected on a given hour range. This filter only can be used with ROP and HOUR aggregations.
2 – Determine the number of periods and compare them with others
3 – Auto-updates data for the generated charts.
4 – If selected, will consider only the last available ROP
Creating Reports importing a text file

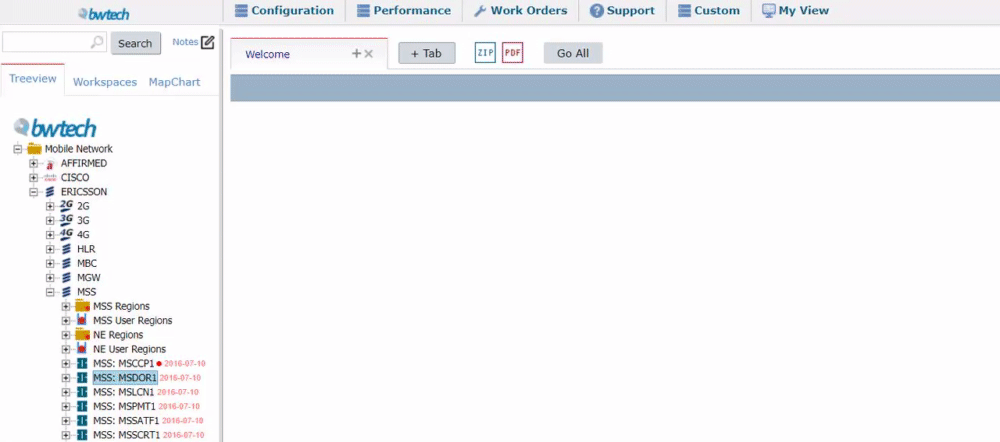

Click on Custom and select Import, then Report.

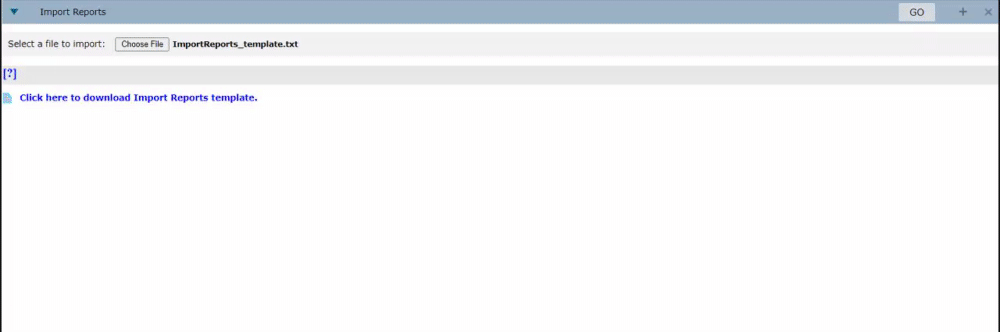

1 – Click to download the Import Report template.
2 – Import the text file template.
3 – Click on GO to create the report. The created charts will be available on MyView > Created at [Current date and time].
COMMON ERRORS
- Illegal characters: Please try to use alphabetical or numerical characters for titles and legends. The opposite may harm your chart during saving.
- Errors in typed KPI: The chart does not return proper results until errors in KPI are corrected. Contact the Bwtech support team for help if needed.
